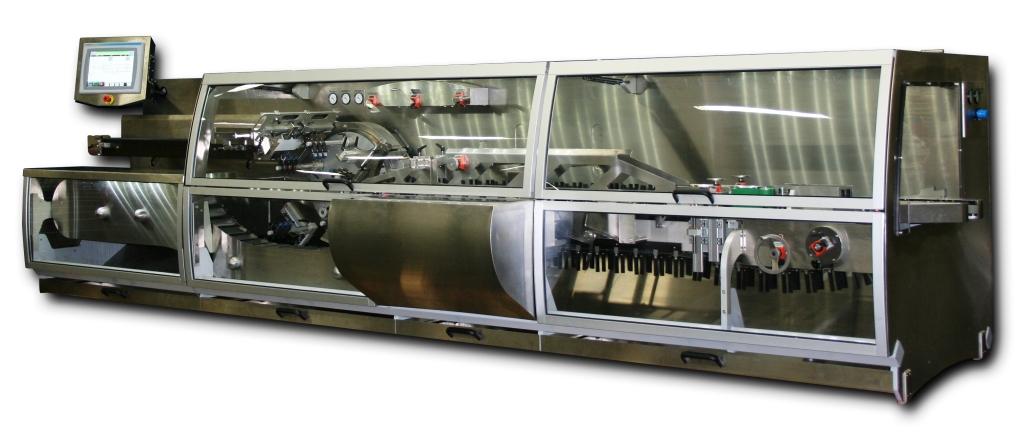

Legacy® CS-600

Small center, ultra high speed end load cartoner for small-medium formats (600 cpm)

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Food, Personal Care, Home Care, Tissue & Hygiene, Pharma & Healthcare
  • SEGMENT: Baby Food, Cosmetics, Deodorants, Fragrances, Men's Shaving, Air Care, Other Home Care, Laundry Care, Feminine Hygiene, Liquid Soaps, Optical, Other Oral Care, Skin & Sun Care, Medical Devices, OTC, Other Pharma & Healthcare, Other Prescription Applications, Injectables, Ophthalmic, Hair Care
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)2000
Machine height (mm)1580
Machine length (mm)6800
Machine weight (kg)4000
Other technical features
Insertion modeEnd Load/Side Load
Performance
Operating modeContinuous
Product changeovern/a
Size changeover15 - 20 min (3-D changeover)
More Information
Other infoThe extended range Legacy® CS-600 cartoner was redesigned from the ground up, with a significant amount of customer input, to be the most productive, completely equipped, competitively priced, ergonomically friendly, multi-purpose small center cartoner in the industry. Machine Centers: 4" & 6".
Packaging range
Max pack height (mm)254
Min pack height (mm)101
Max pack length (mm)127
Min pack length (mm)13
Max pack width (mm)89
Min pack width (mm)13
Packaging features
Packaging closingGlue
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionPerformance
Attached Files
Legacy CS-600 BrochureDOWNLOAD
Video
Legacy CS-600WATCH
