Criterion® CL-330

Criterion® CL-330, Large to Small Carton Capable, High-Speed Continuous Motion

Basic Info

  • TECHNOLOGY: Cartoning & Box Filling
  • INDUSTRY: Food, Beverage, Dairy, Personal Care
  • SEGMENT: Baked Goods, Biscuits & Crackers, Cereals, Salt, Sugar & Spices, Bars, Snacks, Soup & Stock Cubes, Other Beverage, Powdered Milk, Toothpaste
CONTACT US
AFTER SALES SERVICE

Detailed Info

SHOW MORE
Footprint
Machine depth (mm)2000
Machine height (mm)2130
Machine length (mm)9000
Machine weight (kg)6500
Other technical features
Insertion modeEnd Load/Side Load
Label type105x325x350
Line services10x20x50
Performance
Operating modeContinuous
Product changeovern/a
Size changeover3D size change capable
More Information
Other infoDesigned with a high degree of flexibility to accommodate your ever changing product and brand trends in the marketplace, and at a lower cost to you. Direct or Air Frame Carton Opening. Machine Centers: 4.5", 6", 7.5", 9", 12", 15".
Packaging range
Max pack height (mm)368
Min pack height (mm)90
Max pack length (mm)330
Min pack length (mm)54
Max pack width (mm)110
Min pack width (mm)32
Packaging features
Packaging closingGlue
Packaging materialPaperboard
Packaging orientationHorizontal
Packaging TypePrefolded Carton
Packaging typeCarton box
Value proposition
Value propositionPerformance
Attached Files
Criterion CL-330 BrochureDOWNLOAD
SucessCase _RAJ_Frozen Pizza.pdfDOWNLOAD
Video

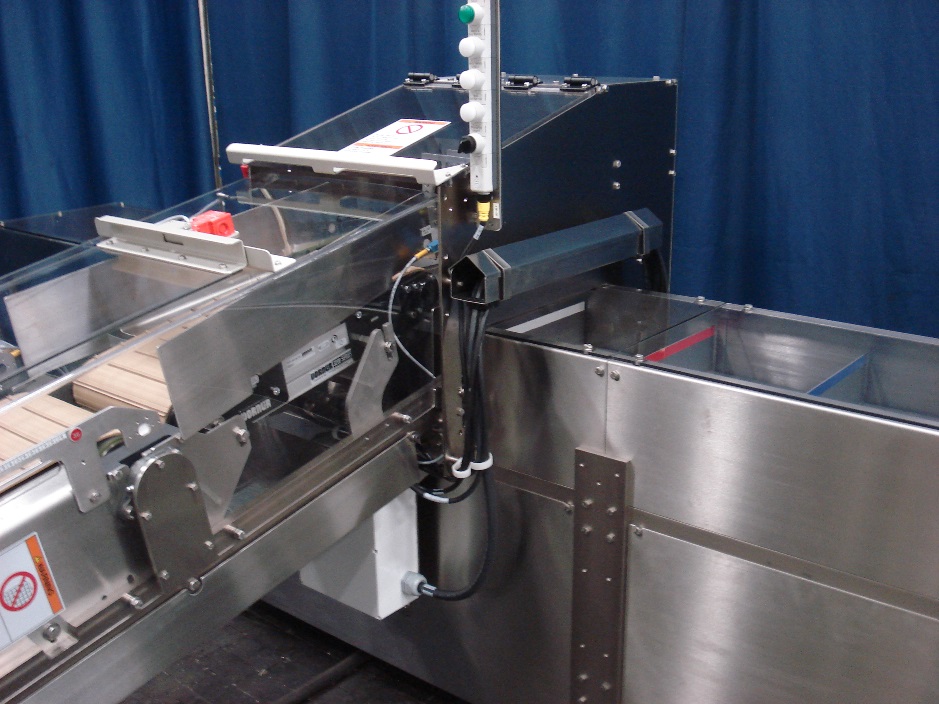

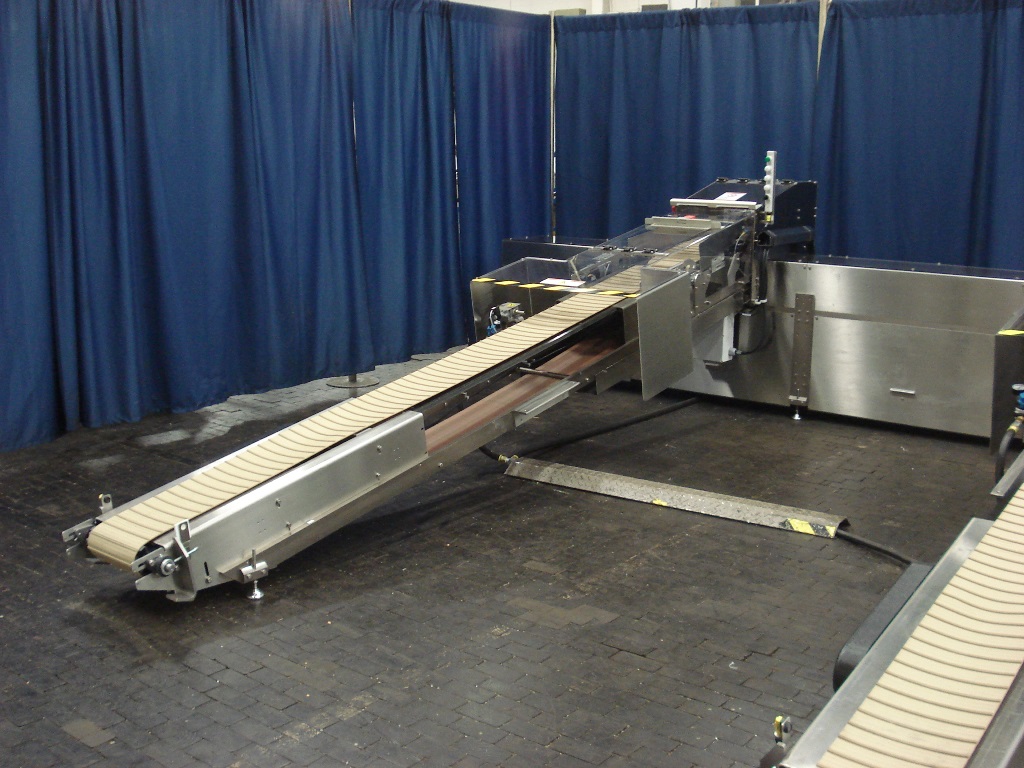

Criterion CL-330 Bag-in-BoxWATCH
